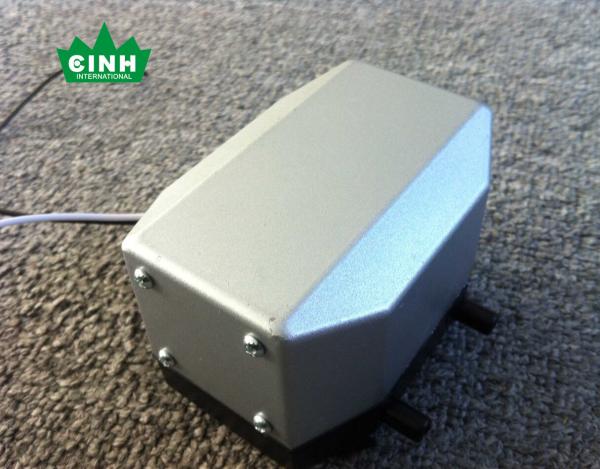

Diaphragm Micro Air Pump 15L/m 30KPA high pressure Medical Application
This diaphragm micro air pump is widely applied for medical purpose, high pressure 30kpa, big air flowrate 15L/m, double coils and double duckvalve structure,
Quick Detail:
Double diaphragm, duckbill valves
Aluminum body
Continuous working day and night
lifetime more than 20,000hours
size:106x76x74 mm
weight:0.62 kg
Outlet & Inlet Dia: 0.3" (7.6 mm)
| Place of Origin: | Zhejiang China (Mainland) | Brand Name: | Cinh or Blank | Model Number: | QBF-15 |
| Theory: | Electromagnetic Pump | Structure: | Diaphragm Air Pump | Usage: | Air Pump |
| Power: | Electric | Flowrate: | 15L/m | Fuel: | Electric |
| Pressure: | 30KPA | Application: | pressing air |
Specifications:
| ITEM | SPECIFICATION |
| Air Output: | 30SCFH(15Lpm) |
| Pump Pressure: | 4.5PSI(30kpa) |
| Power Requirement: | AC220V,AC120V, AC24V or AC12V, 50Hz or 60Hz |
| Power Consumption: | 10W |
| Pump Design: | Double diaphragm, duckbill valves |
| Pump Body: | Aluminium |
| Noise Level: | 40db unconnected, connected operation will reduce db level |
| Dimension(LxWxH): | 4.2"x3"x2.9"(106x76x74mm) |
Applications:
intermittend pneumatic compression(medical)
compression therapy
ozone generator
aquarium
recovery system
fragrance diffuser
air bed
Atmospheric Detection
Dosing chemical material
air cloth
medical applications
industrial applications
breast
fridge
pillow and mattress
beauty equipment

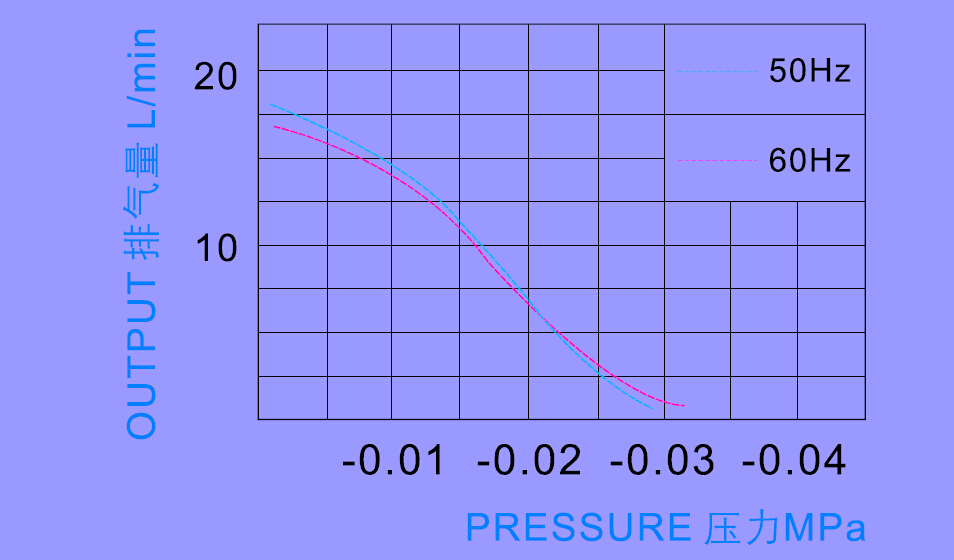

Performance Curve
Description:
1.This diaphragm micro air pump is widely applied for medical purpose, high pressure 30kpa, big air flowrate 15L/m, double coils and double duckvalve structure,
2.This AC micro vacuum pump have long lifetime, low noise, high quality, 15L/M air flowrate and 30kpa pressure.
3.The Micro Air Pump is Compact size , Very low vibration ,Low power consumption
